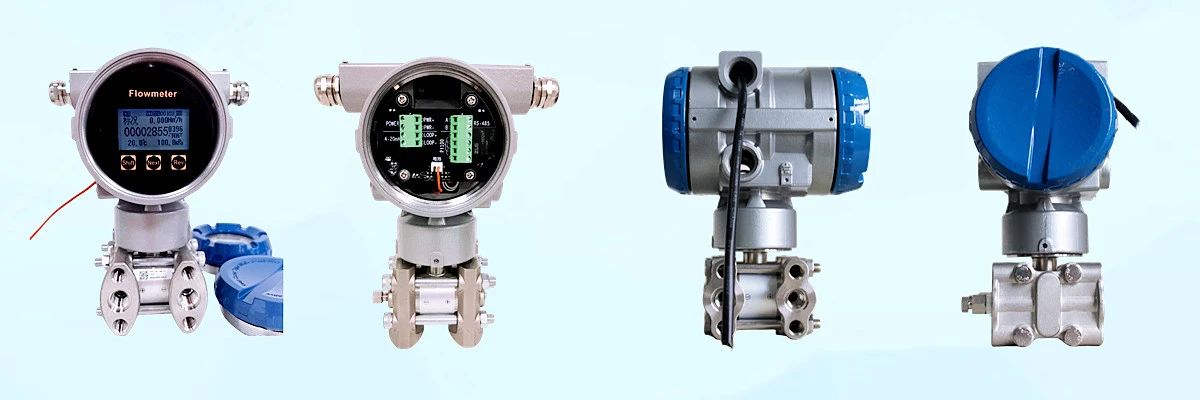

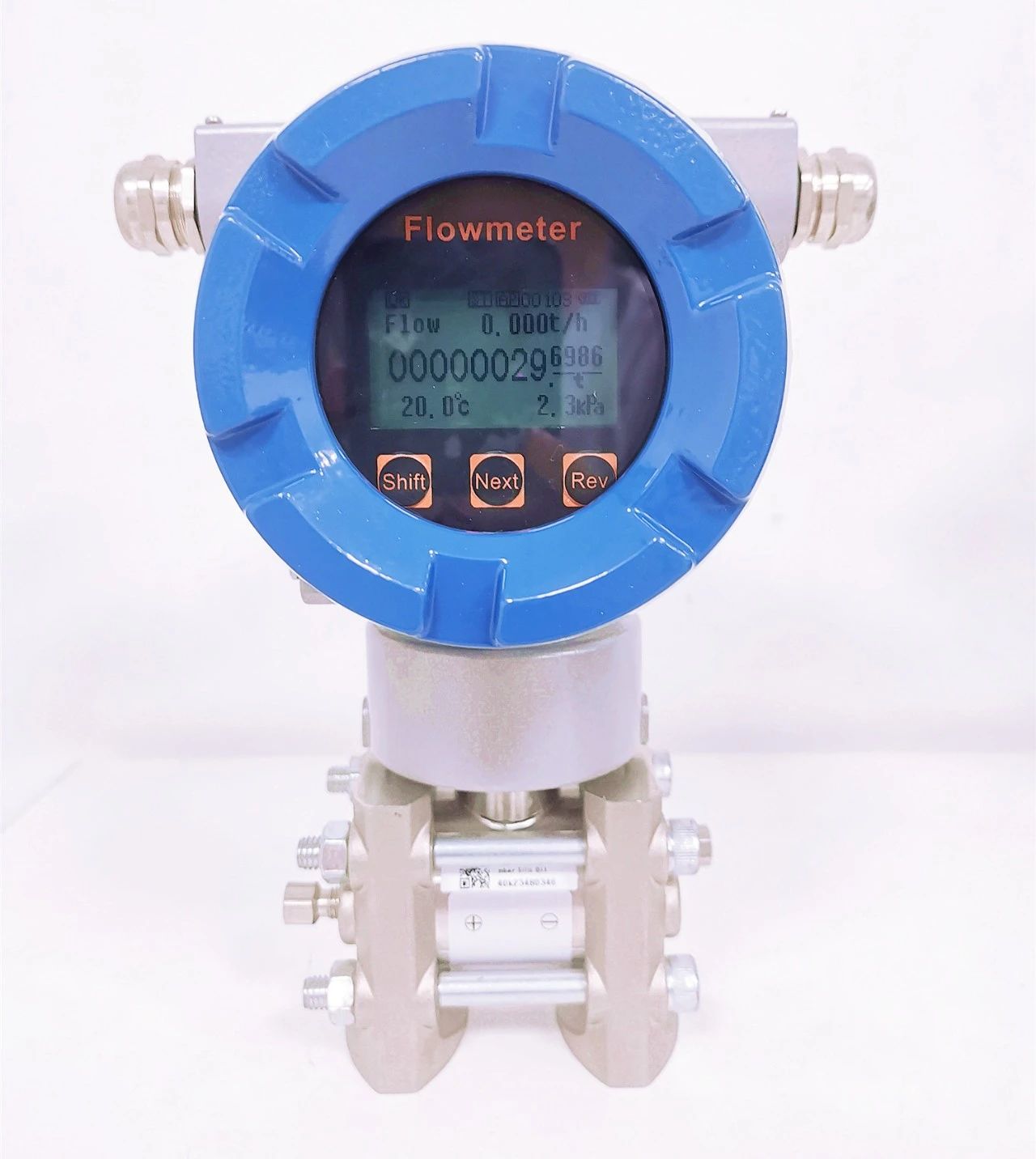

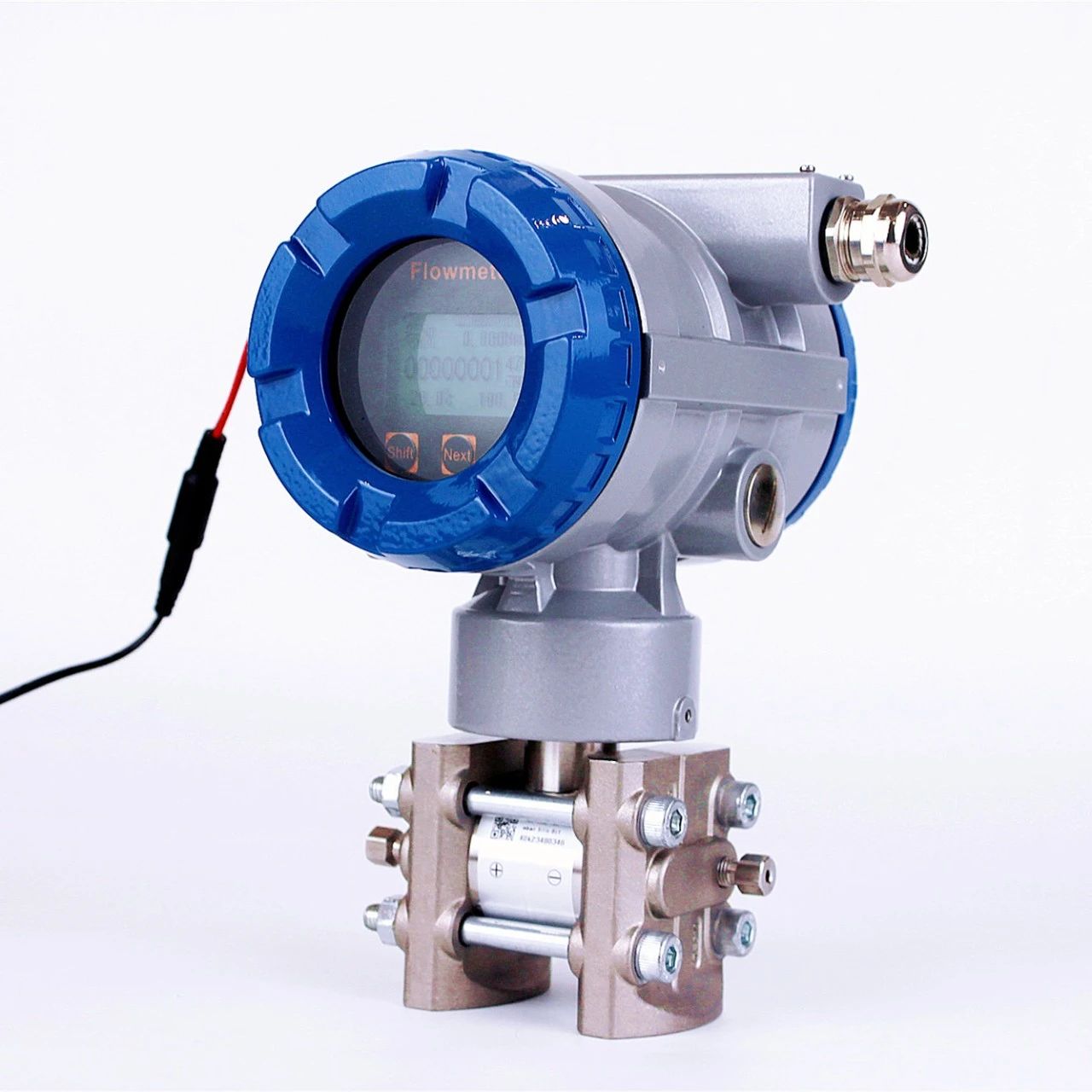

Intelligent multi parameter transmitter leads the new era of industrial monitoring

Multi parameter product introduction:
1. LCD dot matrix Chinese character display, intuitive and convenient, with simple and clear operation;
2. Small size, multiple parameters, and can be connected to various throttling devices to form an integrated flowmeter, such as V-cone, orifice plate, bent pipe, Annubar, etc; 3. Multi variable transmitter is an economical and efficient solution that reduces the need for pipeline penetration, pressure pipes, and connection systems;
4. The central sensing unit of the transmitter adopts high-precision silicon technology, with an accuracy of ± 0.075%;
5. Double overload protection membrane design, single-phase overvoltage can reach 42MPa, which can reduce the probability of sensor damage caused by installation and misoperation;
6. The differential pressure range ratio can reach 100:1, with wider adaptability;
7. Equipped with static pressure compensation and temperature compensation technology, it has high accuracy and good stability;
8. Can be paired with Pt100 or Pt1000, using a multi-dimensional temperature compensation algorithm to finely record and calculate the temperature characteristics of differential pressure and static pressure sensors, ensuring temperature performance within ± 0.04%/10k and minimal temperature impact changes;
9. The transmitter dynamically compensates for parameters such as the outflow coefficient, fluid expansion coefficient, and gas compression coefficient of the throttling device, improving the range ratio and measurement accuracy of the throttling device. The range ratio can reach 10:1;
10. Built in natural gas compression factor compensation algorithm, in line with natural gas metering standards;
11. It can simultaneously display parameters such as instantaneous flow rate, cumulative flow rate, differential pressure, temperature, pressure, etc;
12. On site or remote configuration of important internal parameters for easy operation and maintenance;
13. Output (4~20) mA standard current signal and RS485 standard communication interface;
14. Unique anti-interference design, suitable for RF, electromagnetic, and frequency converter applications;
15. All digital processing, strong anti-interference ability, and reliable measurement;
16. Equipped with self checking function and rich self checking information, it is convenient for users to inspect and debug;
17. It has independent password settings, reliable anti-theft function, and can set different levels of passwords for parameter and total reset and calibration, making it convenient for users to manage;
18. Convenient parameter settings, can be permanently saved, and can store up to 5 years of historical data;
19. Ultra low power consumption, two dry batteries can maintain full performance for 6 years;
20. The working mode can be automatically switched according to the current power supply status, supporting multiple power supply methods such as battery power supply, two-wire system, and three wire system;
