Overview of Quantitative Control Instruments
A quantitative control instrument, often referred to as a batch controller or flow quantitative controller, is a specialized industrial device designed to measure, monitor, and regulate the precise amount of fluid or material passing through a pipeline. By integrating advanced microprocessor technology, these instruments ensure that a predetermined volume or mass is accurately dispensed or processed, making them indispensable in automated industrial environments.
Core Working Principle

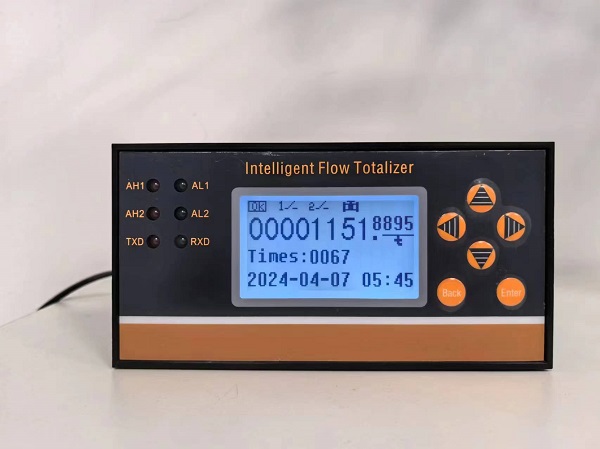

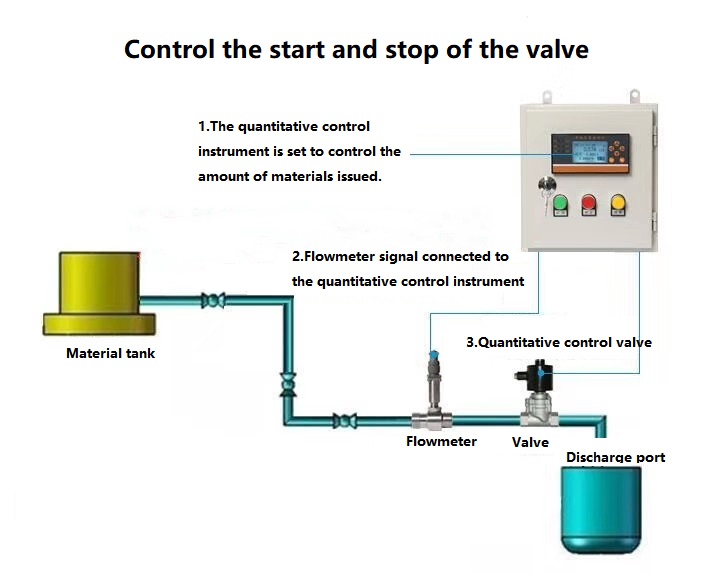

The fundamental operation of a quantitative control instrument relies on receiving signals from external sensors, typically pulse signals from turbine or vortex flowmeters. The instrument is programmed with a specific "instrument constant" (pulses per unit of volume). Based on this constant and the user-defined target quantity, the controller calculates the required number of pulses. Upon activation, it triggers the opening of control valves or pumps. As the fluid flows, the instrument continuously counts the incoming pulses. Once the accumulated pulse count matches the target value, the controller sends a signal to close the valve, thereby achieving precise quantitative control.
Key Features and Capabilities
Modern quantitative control instruments offer a wide array of features to enhance accuracy and operational safety:
● High-Precision Measurement:
Advanced models can achieve loading or batching precisions of up to 0.1% to 0.2%, ensuring minimal product loss and high-quality output.
● Automatic Temperature and Density Compensation:
Many controllers accept inputs from temperature sensors (such as PT100) and density transmitters. This allows the system to automatically compensate for thermal expansion or contraction, converting measured volumes to standard volumes according to industry standards (e.g., ASTM D1250-04 for mineral oils).
● Safety Interlocks:
To prevent accidents, these instruments can integrate with anti-static grounding clamps and liquid level switches. If a grounding fault or potential overflow is detected, the system will trigger an immediate alarm and halt the loading process.
● Multi-Valve Sequence Control:
Controllers can manage multiple groups of valves with programmable action sequences, allowing for complex automated loading operations.
● Communication and Networking:
Equipped with standard industrial communication protocols like Modbus (RS485/RS232), these instruments can easily integrate into centralized computer control systems for remote monitoring, data logging, and network management.
