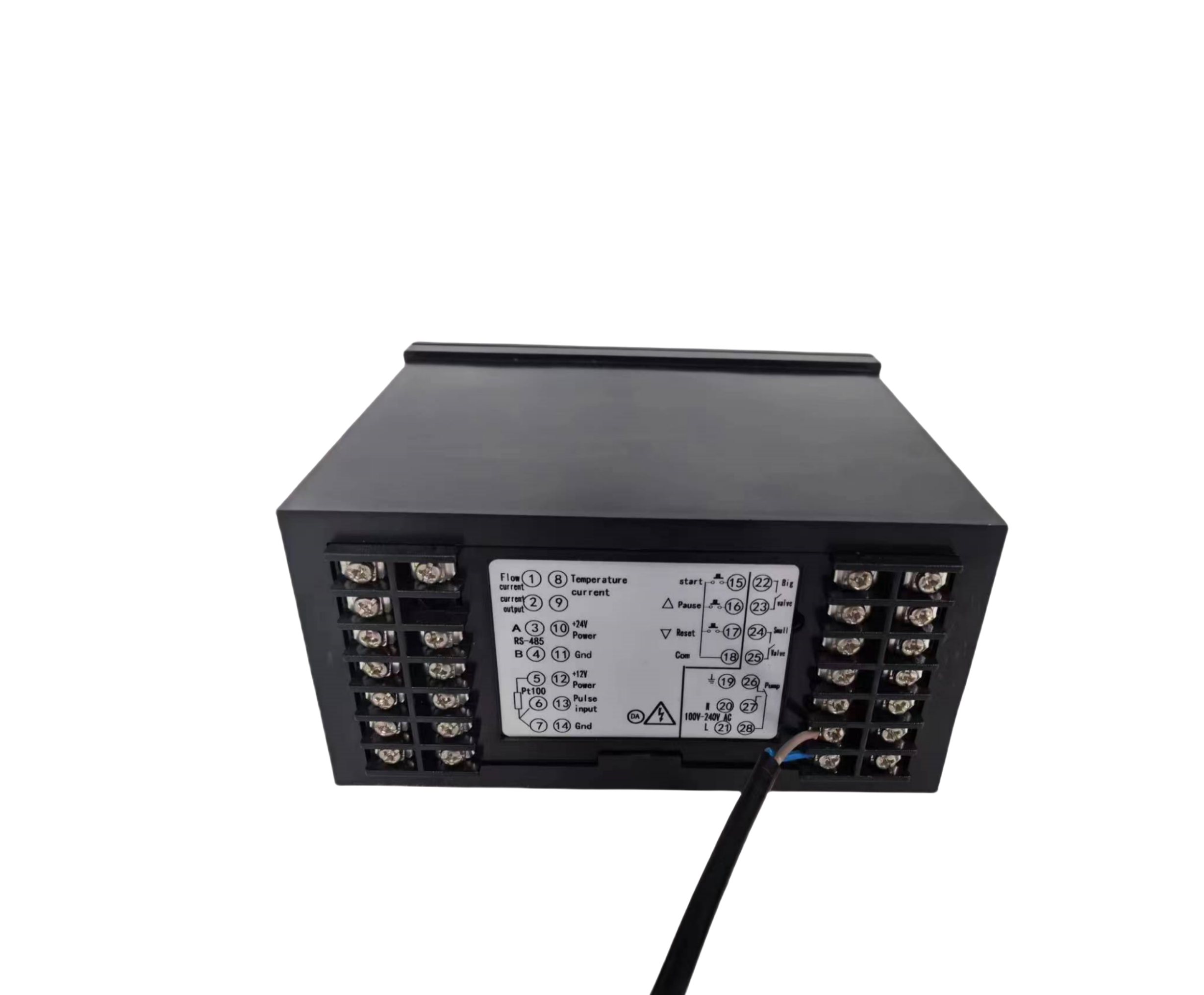

Batch controller

Short Description:

The XSJDL Series Intelligent Batch Controller works with various flow sensors and transmitters to perform precise batch filling and dosing control. Designed for accuracy, efficiency, reliability, and safety, it helps improve production efficiency, reduce operating costs, and enhance product consistency.
SIZE:160*80
Model:XSJ-DI12E
Input signals:Flow signal input:Pulse/4-20mA
Output signals:Pulse/4-20mA/RS485/USB/Alarm
Power supply:24VDC/220VAC (Choose one)

Send email to us

Product Detail

Product Tags

Product Overview

XSJDL series of quantitative control instrument can cooperate with all kinds of flow sensors and transmitters to realize quantitative measurement, quantitative filling, quantitative batching, batching, quantitative water injection and quantitative control of various liquids.

Main Features

High-Precision Metering & Control
Achieves ultra-precise quantitative filling and batching with minimal error margins, ensuring consistent product quality and reducing material waste.

Versatile Signal Compatibility
Seamlessly interfaces with various flow meters (electromagnetic, turbine, vortex, etc.) by accepting standard input signals like pulse, 4-20mA, or RS485/Modbus.

Intelligent Operation & Monitoring
Features a user-friendly HMI interface for easy parameter setting, real-time data display, and automatic alarm functions for over-limit or abnormal conditions.

Robust Industrial Design
Built with high-quality, durable components designed to withstand harsh industrial environments, ensuring long-term stability and low maintenance costs.

Flexible Integration & Customization
Supports easy integration into existing automation systems and offers customizable I/O options to meet specific project requirements.

Performance Index

Electrical performance index
Work power	A.24VDC , Power consumption ≤10W
	B.85-220VAC, Power consumption ≤10W
Input	A.Thermocouple	standard thermal resistance -- Pt100, Pt1000
	B.Current	0 ~ 10mA, 4 ~ 20mA
	C.Voltage	0-5V, 1-5V
	D.Pulse volume	rectangular shape, sine wave and triangular wave,amplitude more than 4V,frequency 0 ~ 10KHz (or according to user requirements).
Output	Analog output	1.DC 0~10mA(Load resistance≤750Ω)
		2.DC 4~20mA(Load resistance≤500Ω)
	Control output	3 way relay output(Large valve, small valve, pump), AC220V/3A; DC24V/6A (resistive load)
	Communication output	tandard serial communication interface: RS-485
	Feed output	DC24V, the load is less than or equal to 100mA; DC12V, the load is less than or equal to 200mA
Print	Serial thermal printer direct printing instrument data, real-time print material data, print data can be customized（Need RS232）
Display mode	A. blacklit screen 128 x 64 dot matrix liquid crystal graphic display
	B. historical cumulative flow, instantaneous flow, medium temperature, medium density, flow (differential current, frequency), clock, alarm status
	C. 0 ~ 999999 instantaneous flow value
	D. 0 ~ 99999999.9999 cumulative value
	E. -9999 ~ 9999 temperature compensation
	F. -99999 ~ 999999 flow (pressure, frequency) value
	G.Size: 152mm * 76mm
Measurement accuracy	Measurement accuracy: + 0.2%FS + 1 word or 0.5%FS + 1 word; frequency conversion accuracy: 1 pulse (LMS) is generally better than 0.2%
Protection mode	A.Power accumulated value time more than 20 years
	B.Automatic reset, power supply under pressure
	C.Abnormal automatic reset (Watch Dog)
	D.Re-settable fuse, short circuit protection

Model Series

XSJ-D SERIES
XSJ-DI0E	With temperature compensation, with large valve / valve / pump control interface, start / stop / reset button interface, with all the way 4 ~ 20mA current output,220VAC / 12 ~ 24VDC power supply
XSJ-DI1E	With temperature compensation, with isolated RS485 communication, with large valve / valve / pump control interface, start / stop / reset button interface, 220VAC / 12 ~ 24VDC power supply
XSJ-DI2E	With temperature compensation, with U disk interface, start / stop / reset button interface, 220VAC / 12 ~ 24VDC power supply
XSJ-DI5E	With temperature compensation, with RS232 communication, start / stop / reset button interface, 220VAC / 12 ~ 24VDC power supply（Printer can be connected）
